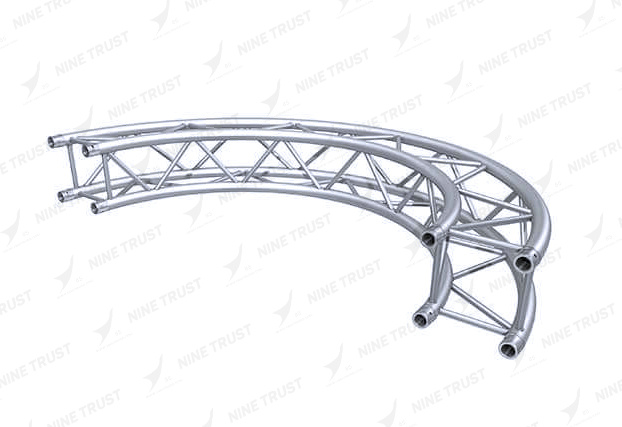

YT34PL circle truss system

Standard available lengths and codes
Diameter(Metres) Diameter(Feet) Deg Weight(kg) Code
2.00 6.56 180° 17.00 YT34R10-180PL
3.00 9.84 90° 13.00 YT34R15-90PL
4.00 13.12 90° 16.40 YT34R20-90PL
5.00 16.40 45° 11.20 YT34R25-45PL
6.00 19.68 60° 16.20 YT34R30-60PL
7.00 22.96 45° 15.00 YT34R35-45PL
8.00 26.24 45° 16.50 YT34R40-45PL
9.00 29.52 45° 19.00 YT34R45-45PL
10.00 32.80 30° 15.50 YT34R50-30PL
other lengths available on request
ASK THE PRODUCTS QUOTES
YT34PL circle truss system

YT34PL circle truss system

Thank you for your inquiry, please enter your information in the form below so that we can serve you better!

Purchase quantity：

parameter

  • Colour: Black / Aluminum (Other colours available on request)
  • Material: aluminum 6082
  • Number of points: 4-point
  • Edge dimension: 29cm
  • System: YT34PL
  • Type: circle
  • Diameter circle: 2-10m
  • Main Pipe Diameter: 48mm
  • Wall thickness main pipe: 3mm
  • Brace diameter: 16mm
  • Wall thickness Brace: 2mm

NEED HELP?

Need advice about one of our products or services?

CONTACT US

DOWNLOAD

Accessories

  • YT 34 Multi Box corner
  • YT 34 PL 2-way corner
  • YT 34 PL 2-way corner
  • YT 34 PL 2-way corner
  • YT 34 PL 2-way corner
  • YT 34 PL 2-way corner
  • YT 34 PL 3-way corner
  • YT 34 PL 3-way corner
  • YT 34 PL 4-way corner
  • YT 34 PL 4-way corner
  • YT 34 PL 5-way corner
  • YT 34 PL base plate
  • YT 34 Multi Box corner

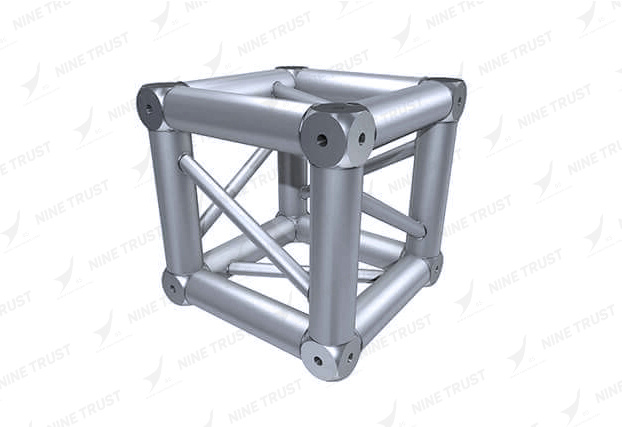

    YT 34 Multi Box corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34

    Type: corner

    Main Pipe Diameter:50mm

    Wall thickness main pipe:3mm

    Brace diameter:20mm

    Wall thickness Brace:2mm

    CONTACT US

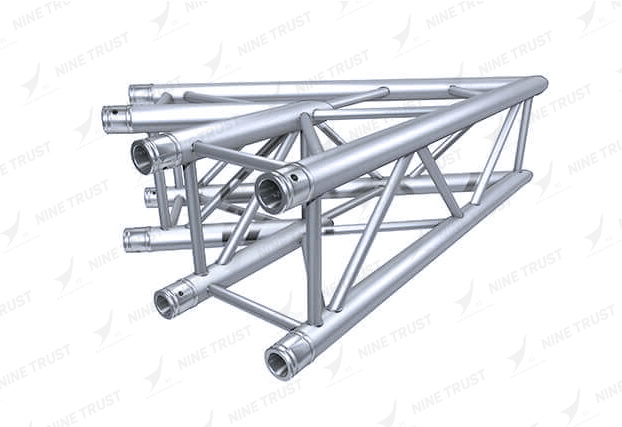

  • YT 34 PL 2-way corner C19 45°

    YT 34 PL 2-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

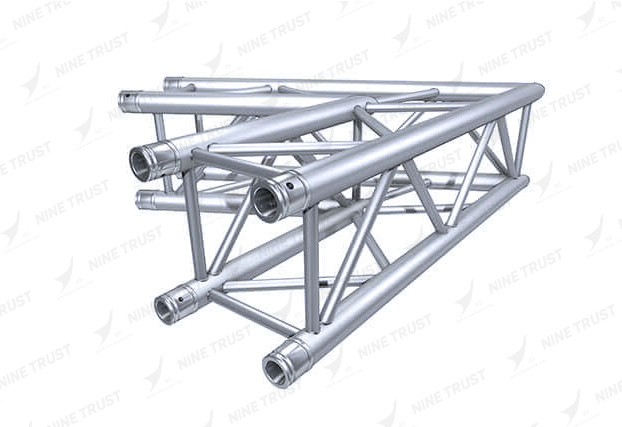

  • YT 34 PL 2-way corner C20 60°

    YT 34 PL 2-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

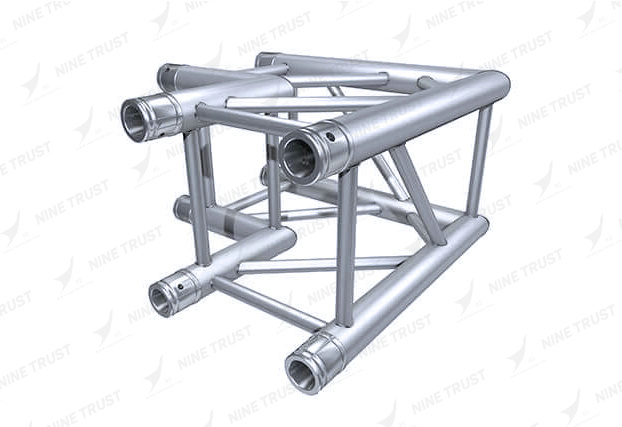

  • YT 34 PL 2-way corner C21 90°

    YT 34 PL 2-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

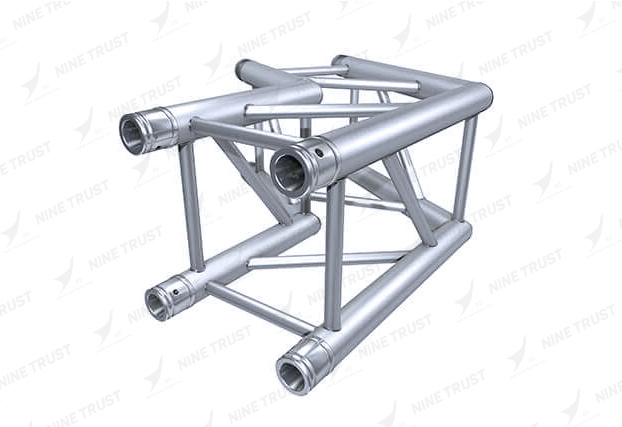

  • YT 34 PL 2-way corner C22 120°

    YT 34 PL 2-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    >
    CONTACT US

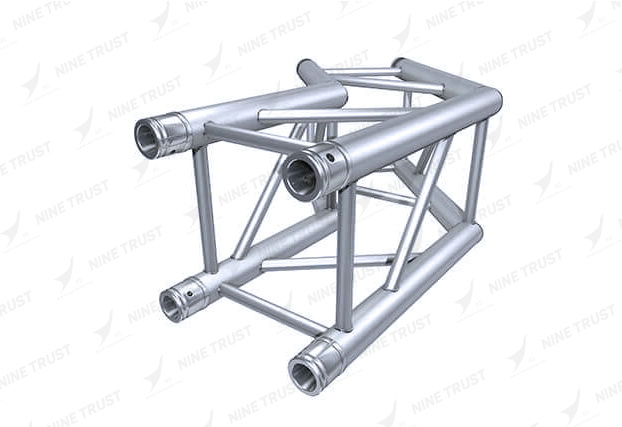

  • YT 34 PL 2-way corner C23 135°

    YT 34 PL 2-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

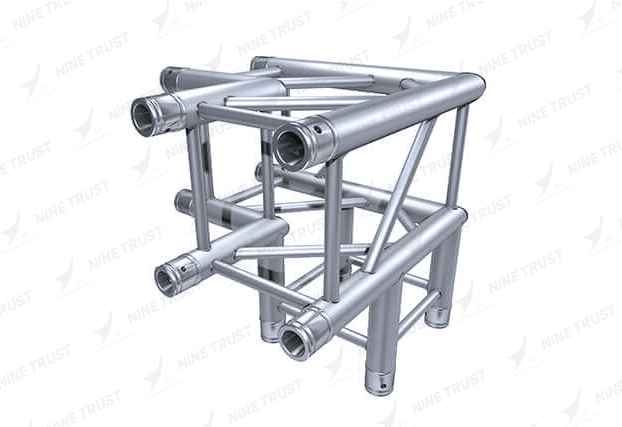

  • YT 34 PL 3-way corner C30 90°

    YT 34 PL 3-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

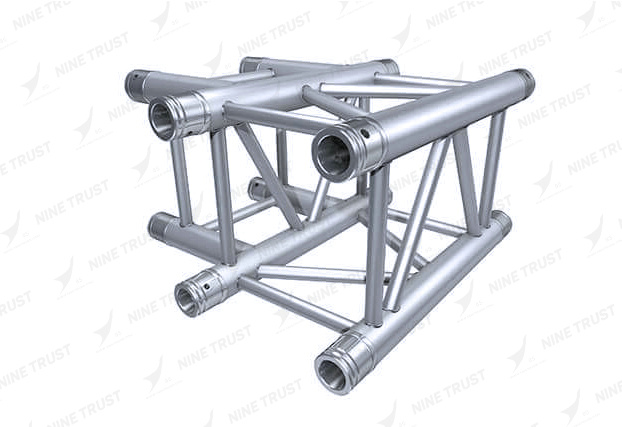

  • YT 34 PL 3-way corner T35

    YT 34 PL 3-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

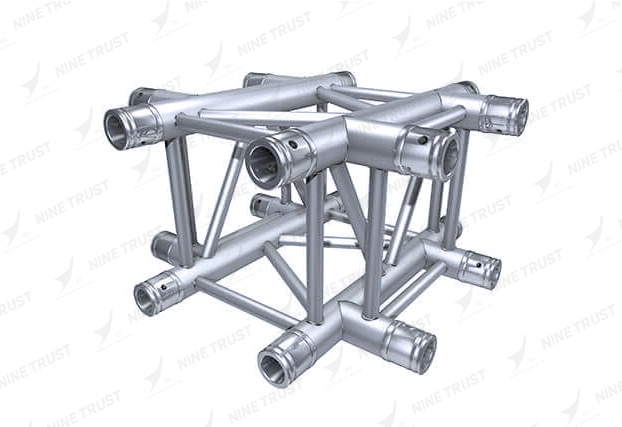

  • YT 34 PL 4-way corner C41

    YT 34 PL 4-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

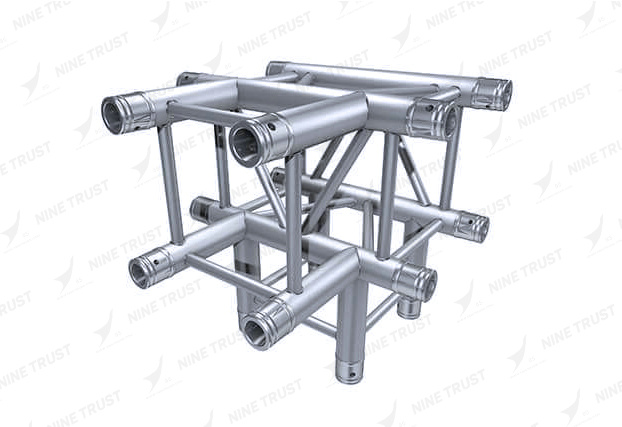

  • YT 34 PL 4-way corner T40

    YT 34 PL 4-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

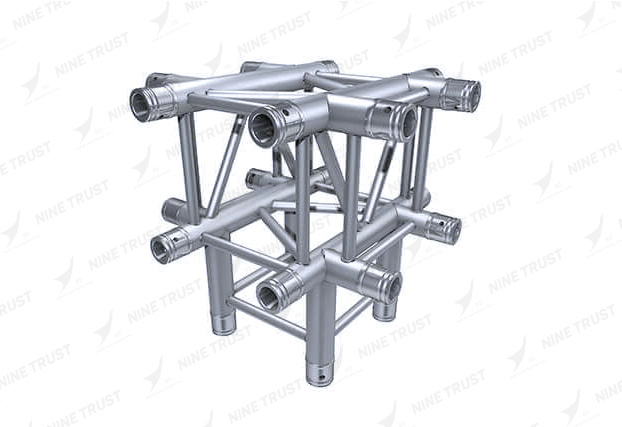

  • YT 34 PL 5-way corner C55

    YT 34 PL 5-way corner

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: corner

    Main Pipe Diameter:48mm

    Wall thickness main pipe:3mm

    Brace diameter:16mm

    Wall thickness Brace:2mm

    CONTACT US

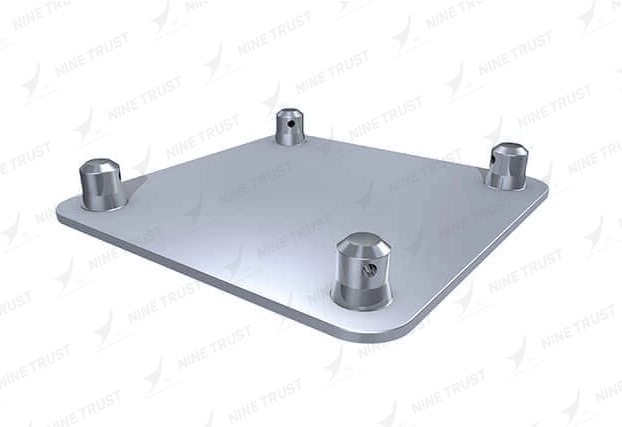

  • YT 34 PL base plate

    YT 34 PL base plate

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 4-point

    Edge dimension: 29cm

    System: YT34PL

    Type: Sonderteil

    CONTACT US
