YT52 truss system

Standard available lengths and codes
Metres	Feet	Weight(kg)	Code
0.60	1.97	10.70	YT52060
0.80	2.62	14.30	YT52080
1.60	5.25	23.00	YT52160
2.40	7.87	27.50	YT52240
3.20	10.50	44.00	YT52320
other lengths available on request

ASK THE PRODUCTS QUOTES

parameter

Colour: Aluminum
Material: aluminum 6082
Number of points: 3-point
Edge dimension: 58*53cm
System: YT52
Type: straight
Truss length: check size list
Main Pipe Diameter: 50mm
Wall thickness main pipe: 4mm
Brace diameter: 25mm
Wall thickness Brace: 3mm

NEED HELP?

Need advice about one of our products or services?

DOWNLOAD

Catalog

Accessories

YT 52 2-way corner
YT 52 3-way corner
YT 52 4-way corner
YT 52 base plate
YT 52 conical adapter
YT 52 Sleeve

YT 52 2-way corner

Colour: aluminum

Material: aluminum 6082

Number of points: 3-point

Edge dimension: 58*53cm

System: YT52

Type: corner

Main Pipe Diameter:50mm

Wall thickness main pipe:4mm

Brace diameter:25mm

Wall thickness Brace:3mm

CONTACT US

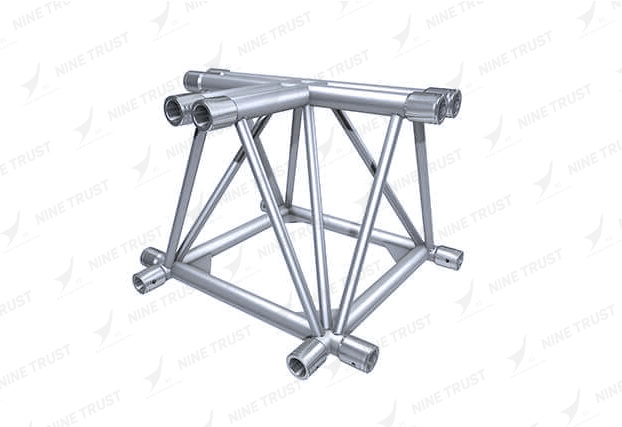

YT 52 3-way corner

Colour: aluminum

Material: aluminum 6082

Number of points: 3-point

Edge dimension: 58*53cm

System: YT52

Type: corner

Main Pipe Diameter:50mm

Wall thickness main pipe:4mm

Brace diameter:25mm

Wall thickness Brace:3mm

CONTACT US

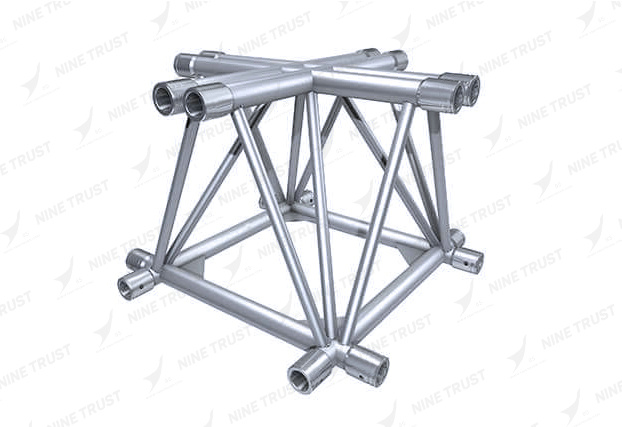

YT 52 4-way corner

Colour: aluminum

Material: aluminum 6082

Number of points: 3-point

Edge dimension: 58*53cm

System: YT52

Type: corner

Main Pipe Diameter:50mm

Wall thickness main pipe:4mm

Brace diameter:25mm

Wall thickness Brace:3mm

CONTACT US

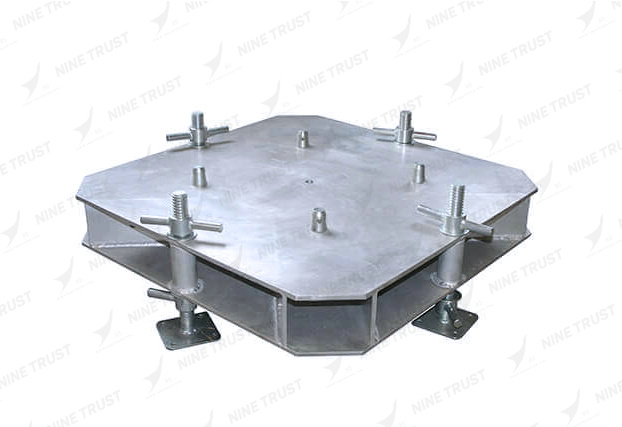

YT 52 base plate

Colour: aluminum

Material: aluminum 6082

Number of points: 3-point

Edge dimension: 58*53cm

System: YT52

Type: Sonderteil

Main Pipe Diameter:50mm

Wall thickness main pipe:4mm

Brace diameter:25mm

Wall thickness Brace:3mm

CONTACT US

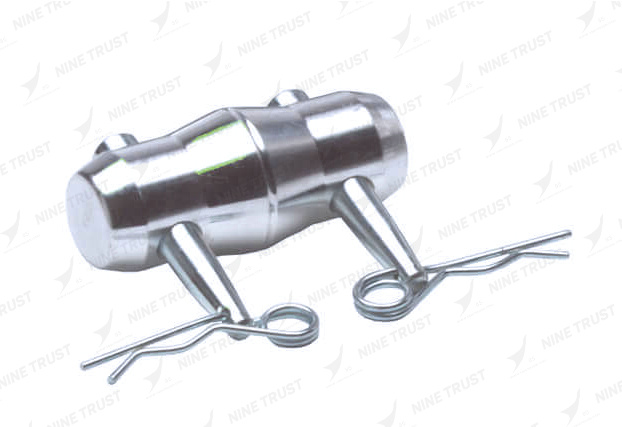

YT 52 conical adapter

Colour: aluminum

Material: aluminum 6082

Number of points: 3-point

Edge dimension: 58*53cm

System: YT52

Type: corner

Main Pipe Diameter:50mm

Wall thickness main pipe:4mm

Brace diameter:25mm

Wall thickness Brace:3mm

CONTACT US

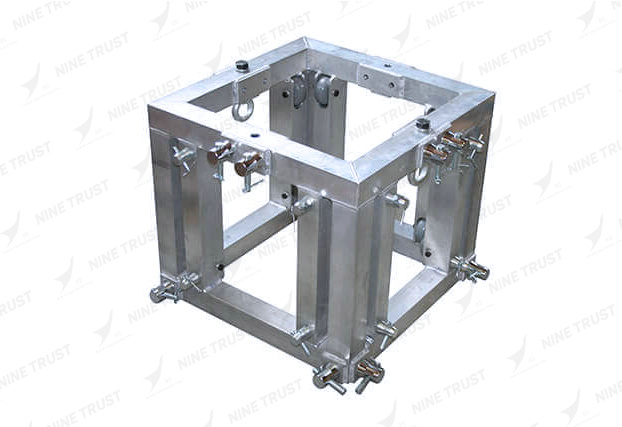

YT 52 Sleeve

Colour: aluminum

Material: aluminum 6082

Number of points: 3-point

Edge dimension: 58*53cm

System: YT52

Type: corner

Main Pipe Diameter:50mm

Wall thickness main pipe:4mm

Brace diameter:25mm

Wall thickness Brace:3mm

CONTACT US
