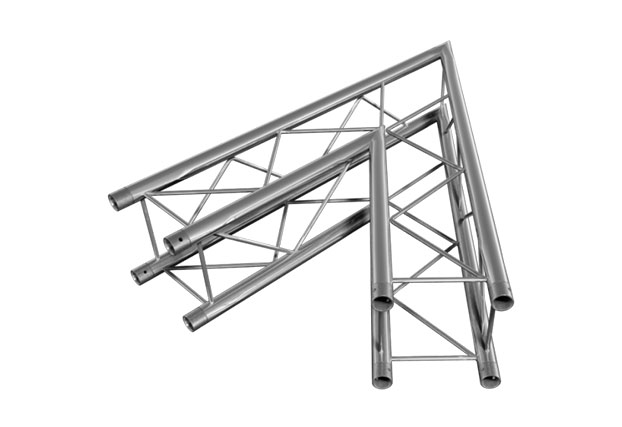

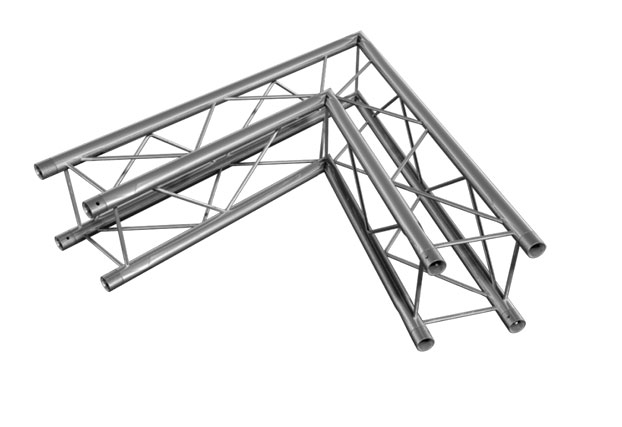

YT 24 2-way corner
Colour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1,60mm
Brace diameter:8mm
YT24 circle truss system
| Standard available lengths and codes | ||||
|---|---|---|---|---|
| Diameter(Metres) | Diameter(Feet) | Deg | Weight(kg) | Code |
| 1.00 | 3.28 | 180° | 4.50 | YT24R05-180 |
| 2.00 | 6.56 | 180° | 8.70 | YT24R10-180 |
| 3.00 | 9.84 | 90° | 8.30 | YT24R15-90 |
| 4.00 | 13.12 | 90° | 10.90 | YT24R20-90 |
| 5.00 | 16.40 | 90° | 13.70 | YT24R25-90 |
| 6.00 | 19.68 | 90° | 16.50 | YT24R30-90 |
| 7.00 | 22.96 | 60° | 12.80 | YT24R35-60 |
| 8.00 | 26.24 | 60° | 14.60 | YT24R40-60 |
| 9.00 | 29.52 | 60° | 16.50 | YT24R45-60 |
| 10.00 | 32.80 | 45° | 13.70 | YT24R50-45 |
| other lengths available on request | ||||
ASK THE PRODUCTS QUOTES
parameter
- Colour: Black / Aluminum (Other colours available on request)
- Material:Aluminum 6082-T6
- Number of points: 4-point
- Edge dimension: 22 cm
- System: YT24
- Type: Circle
- Diameter circle: 1-10m
- Main Pipe Diameter: 35mm
- Wall thickness main pipe: 1,60mm
- Snake brace diameter: 8mm
DOWNLOAD
Accessories
-
YT 24 2-way corner -
YT 24 2-way corner -
YT 24 3-way corner -
YT 24 4-way corner -
YT 24 base plate -
YT 24 Box corner -
Yt 24 2-way corner -
Yt 24 2-way corner -
Yt 24 2-way corner -
Yt 24 3-way corner -
Yt 24 4-way corner -
Yt 24 5-way corner
-
CONTACT US -

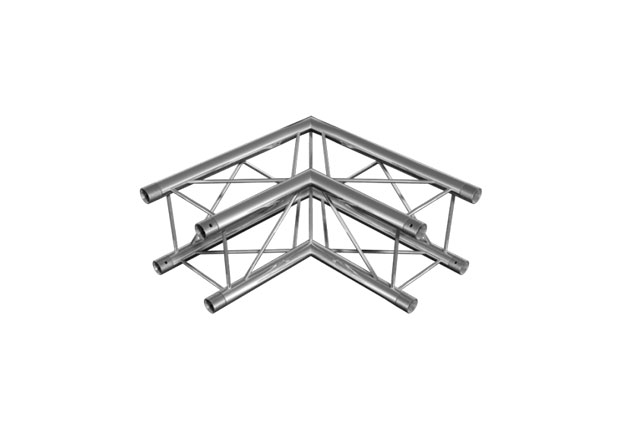

YT 24 2-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1,60mm
Brace diameter:8mm
-

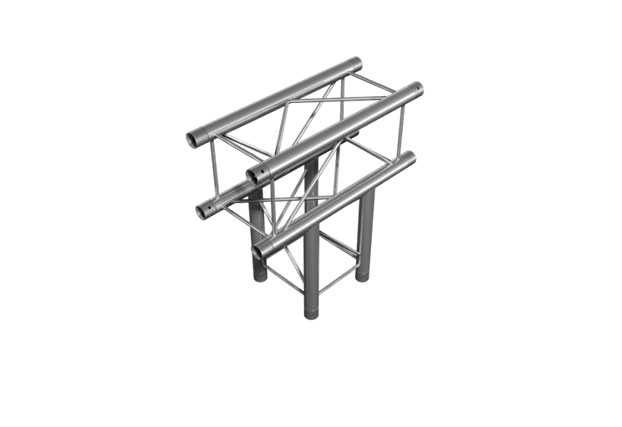

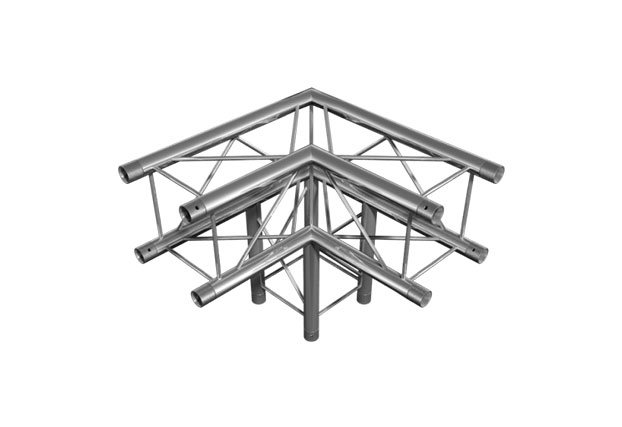

YT 24 3-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1,60mm
Brace diameter:8mm
-

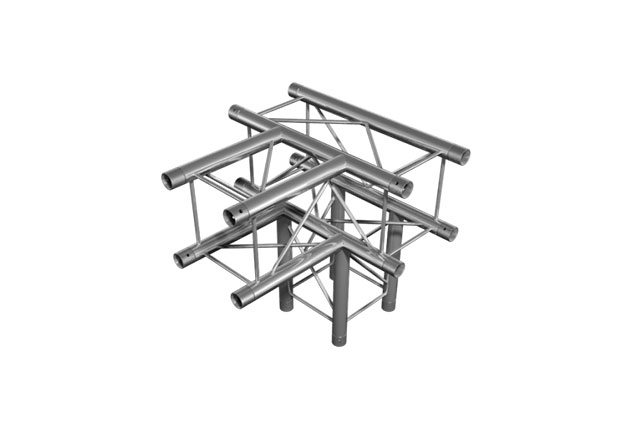

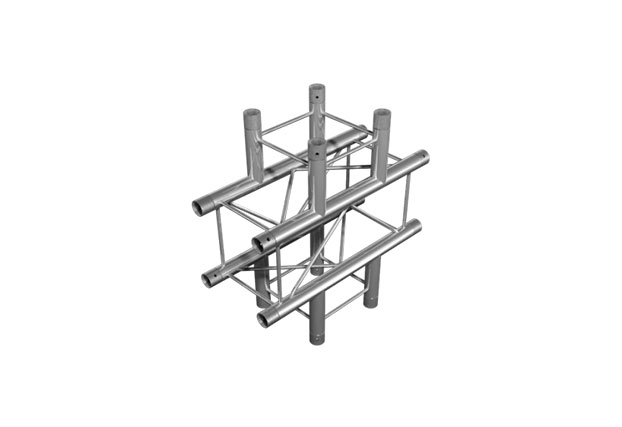

YT 24 4-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1,60mm
Brace diameter:8mm
-

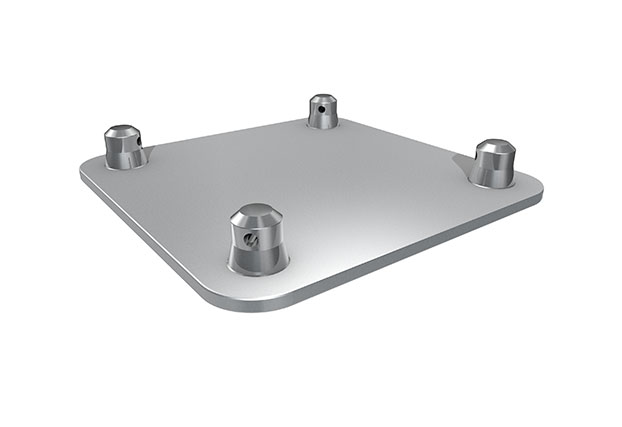

YT 24 base plate
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: Sonderteil
Height: 225mm
Brace:225mm
Length:50mm
Weight:2.2kg
-

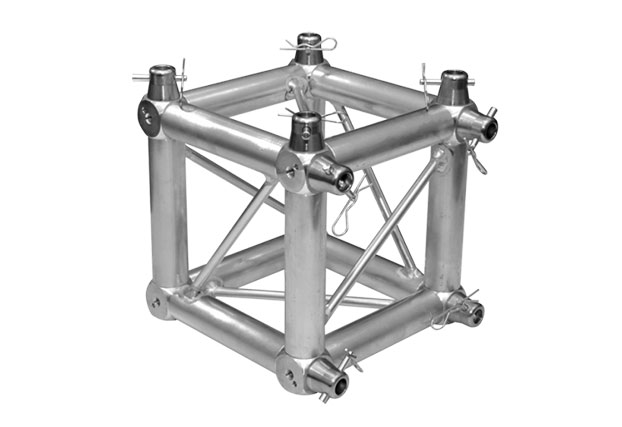

YT 24 Box corner
CONTACT USHeight: 220mm
Brace:220mm
Length:220mm
Weight:5.6kg
Colour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:3mm
-

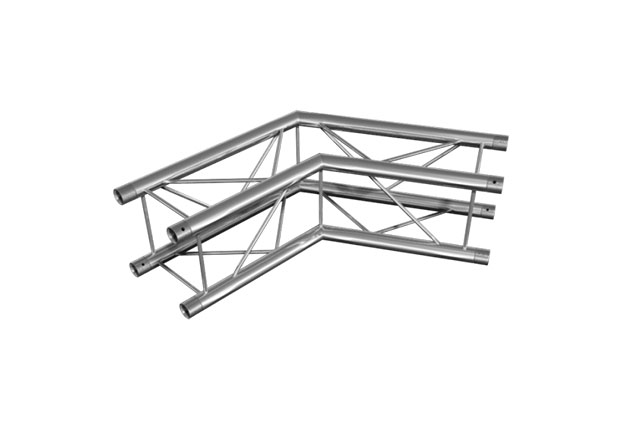

Yt 24 2-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 100cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1,60mm
-

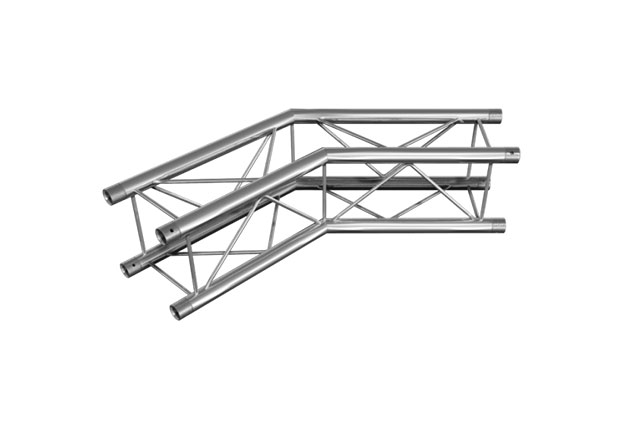

Yt 24 2-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 100cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1.6mm
-
Yt 24 2-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1.6mm
-
Yt 24 3-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1.6mm
-
Yt 24 4-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:1.6mm
-

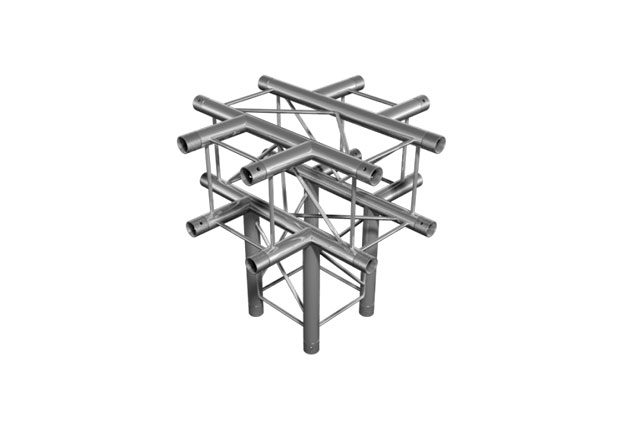

Yt 24 5-way corner
CONTACT USColour: aluminum
Material: aluminum 6082
Number of points: 4-point
Edge dimension: 22cm
System: YT24
Type: corner
Truss length: 50cm
Main Pipe Diameter:35mm
Wall thickness main pipe:3mm
