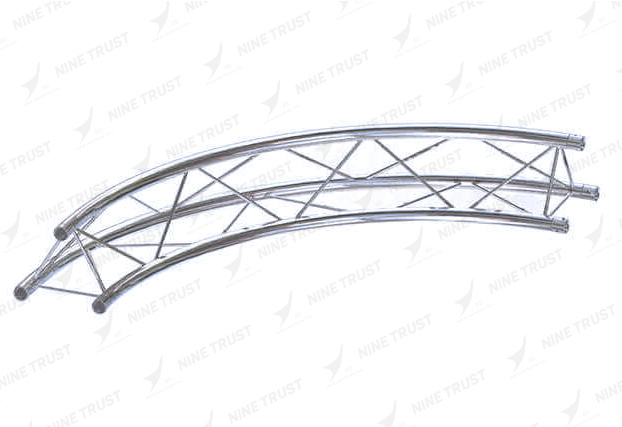

YT23 circle truss system

Standard available lengths and codes
Diameter(Metres) Diameter(Feet) Deg Weight(kg) Code
1.00 3.28 180° 4.30 YT23R50-30
2.00 6.56 90° 4.30 YT23R05-180
3.00 9.84 90° 6.30 YT23R10-90
4.00 13.12 90° 8.50 YT23R15-90
5.00 16.40 90° 10.50 YT23R20-90
6.00 19.68 60° 8.50 YT23R25-90
7.00 22.96 60° 9.90 YT23R30-60
8.00 26.24 60° 11.30 YT23R35-60
9.00 29.52 60° 12.70 YT23R40-60
10.00 32.80 30° 10.60 YT23R45-60
10.00 32.80 45° 12.00 YT23R50-45
other lengths available on request
ASK THE PRODUCTS QUOTES
YT23 circle truss system

YT23 circle truss system

Thank you for your inquiry, please enter your information in the form below so that we can serve you better!

Purchase quantity：

parameter

  • Colour: Black / Aluminum (Other colours available on request)
  • Material:Aluminum 6082-T6
  • Number of points: 3-point
  • Edge dimension: 22 cm
  • System: YT23
  • Type: Circle
  • Diameter circle: 1-10m
  • Main Pipe Diameter: 35mm
  • Wall thickness main pipe: 1,60mm
  • Snake brace diameter: 8mm

NEED HELP?

Need advice about one of our products or services?

CONTACT US

DOWNLOAD

Accessories

  • YT23 2-WAY CORNER
  • YT23 2-WAY CORNER
  • YT23 2-WAY CORNER
  • YT23 2-WAY CORNER
  • YT23 2-WAY CORNER
  • YT23 2-WAY CORNER
  • YT23 2-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 3-WAY CORNER
  • YT23 4-WAY CORNER
  • YT23 4-WAY CORNER
  • YT23 4-WAY CORNER
  • YT23 4-WAY CORNER
  • YT23 4-WAY CORNER
  • YT23 4-WAY CORNER
  • YT23 5-WAY CORNER
  • YT23 5-WAY CORNER
  • YT23 5-WAY CORNER
  • YT23 BASE

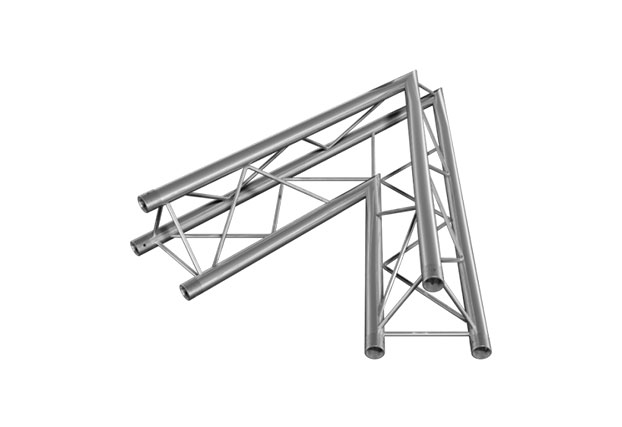

  • YT23 2-WAY CORNER C19 45°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 100cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US
  • YT23 2-WAY CORNER C20 60°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 100cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

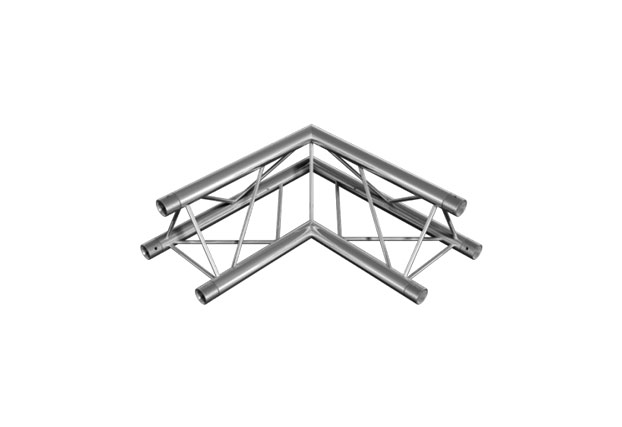

  • YT23 2-WAY CORNER C21 90°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

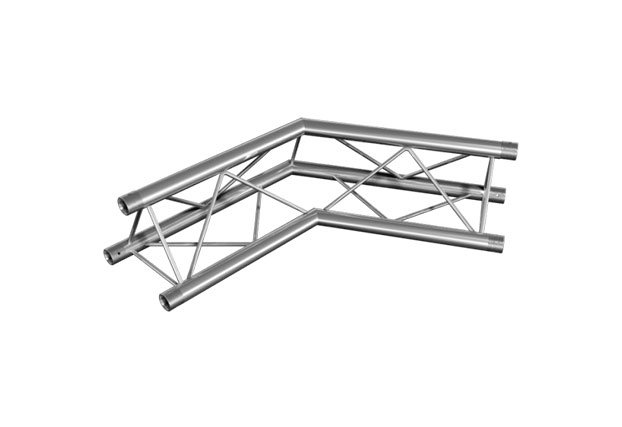

  • YT23 2-WAY CORNER C22 120°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

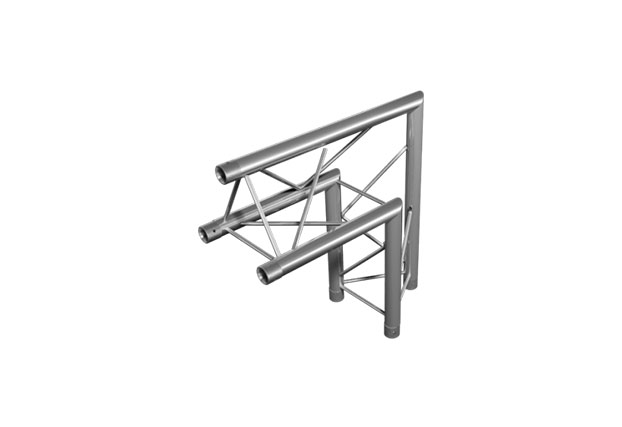

  • YT23 2-WAY CORNER C24 90°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

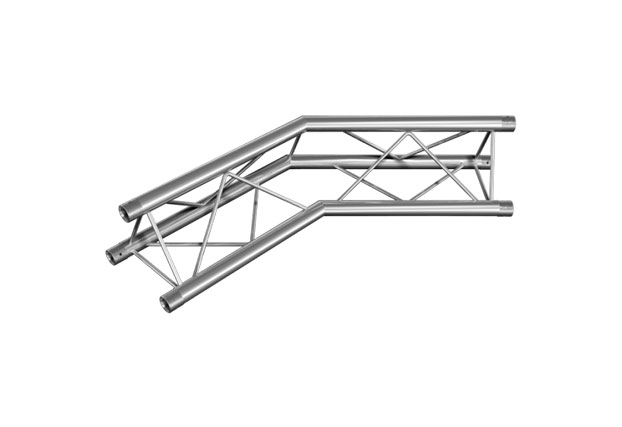

  • YT23 2-WAY CORNER C23 135°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

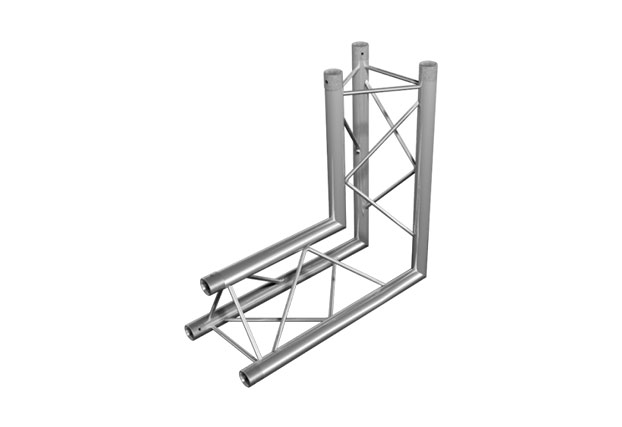

  • YT23 2-WAY CORNER C25 90°

    YT23 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

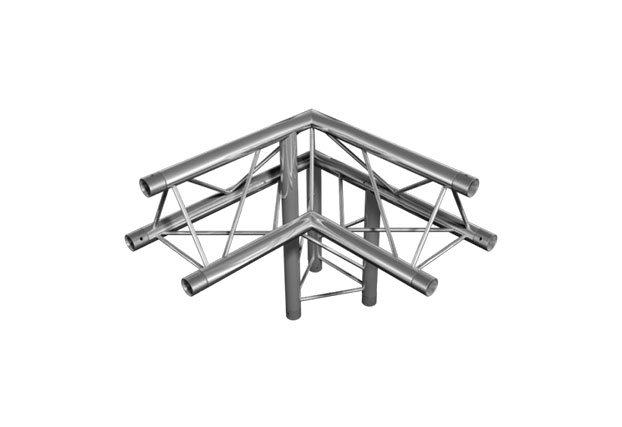

  • YT23 3-WAY CORNER C31

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

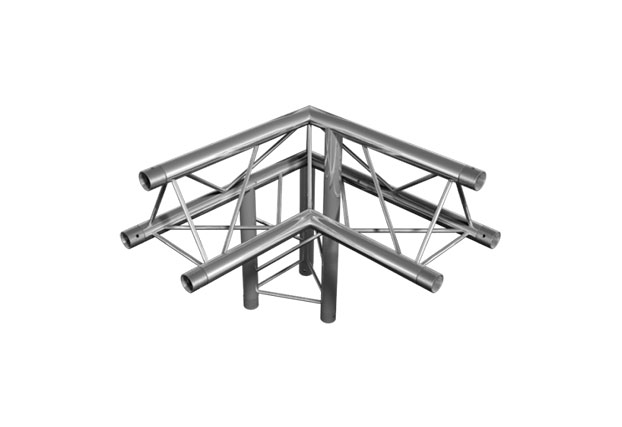

  • YT23 3-WAY CORNER C32

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

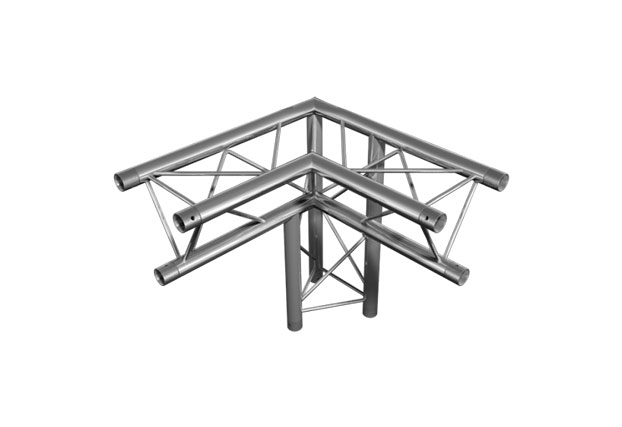

  • YT23 3-WAY CORNER C33

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

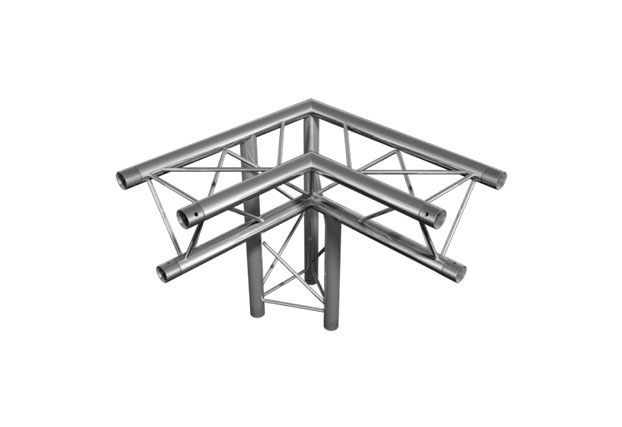

  • YT23 3-WAY CORNER C34

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US
  • YT23 3-WAY CORNER T35

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

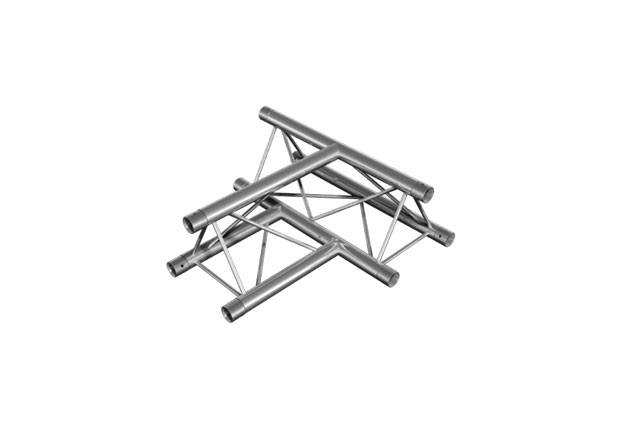

  • YT23 3-WAY CORNER T36

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

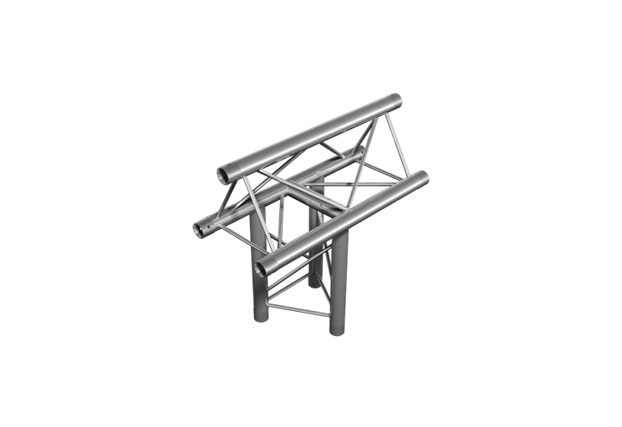

  • YT23 3-WAY CORNER T37

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

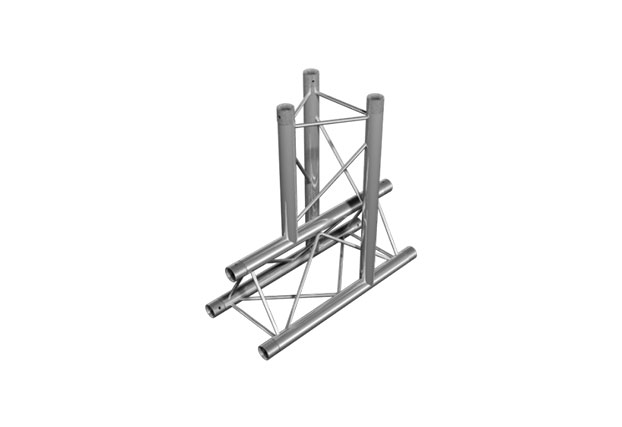

  • YT23 3-WAY CORNER T38

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

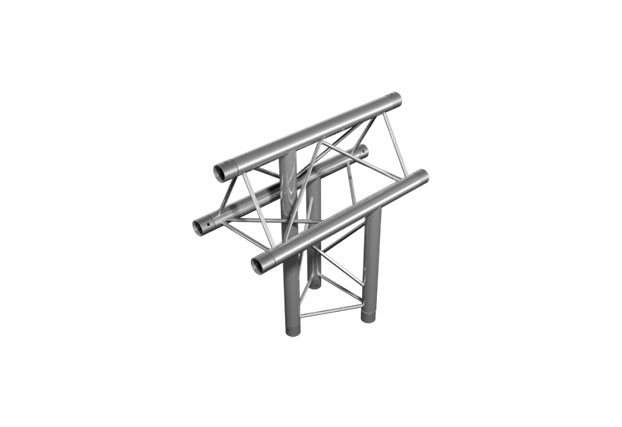

  • YT23 3-WAY CORNER T39

    YT23 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

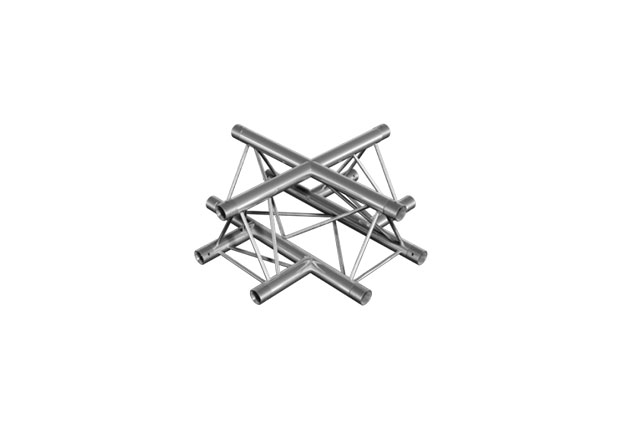

  • YT23 4-WAY CORNER C41

    YT23 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

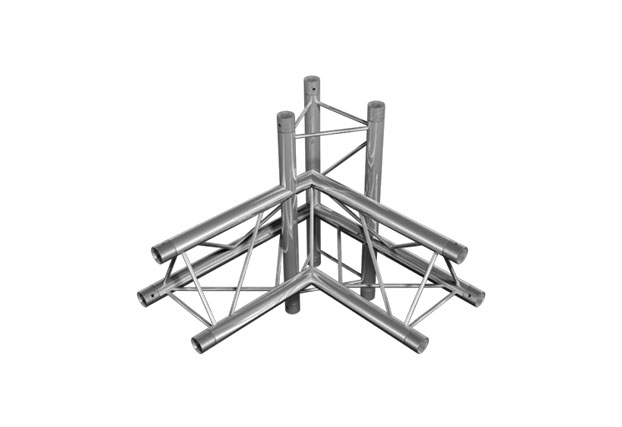

  • YT23 4-WAY CORNER C44

    YT23 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

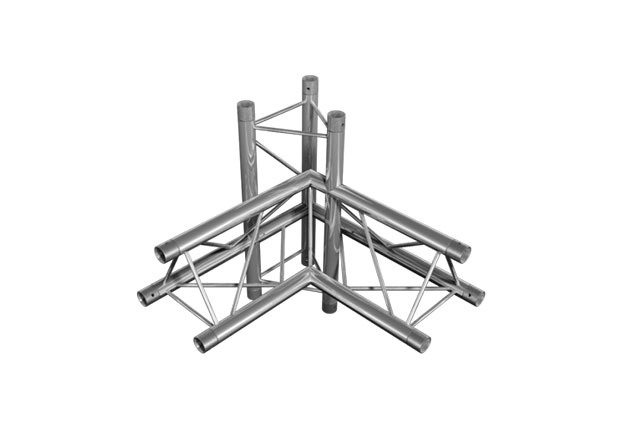

  • YT23 4-WAY CORNER C45

    YT23 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

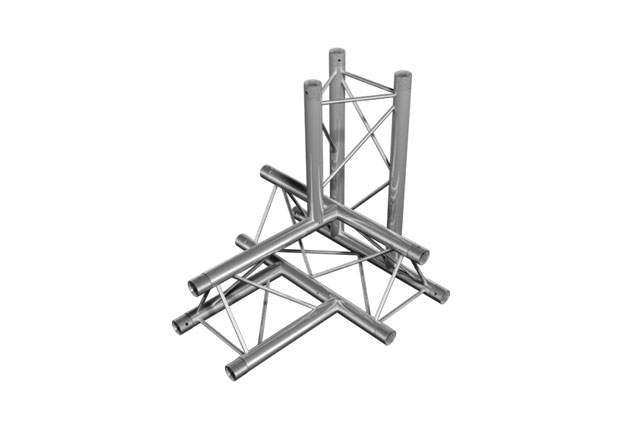

  • YT23 4-WAY CORNER T42

    YT23 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

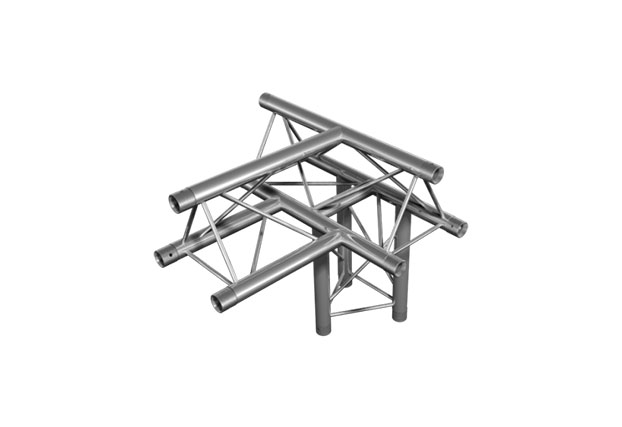

  • YT23 4-WAY CORNER T43

    YT23 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

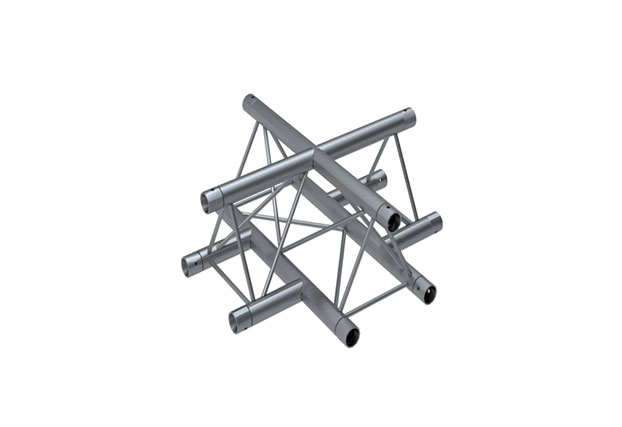

  • YT23 4-WAY CORNER T47

    YT23 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

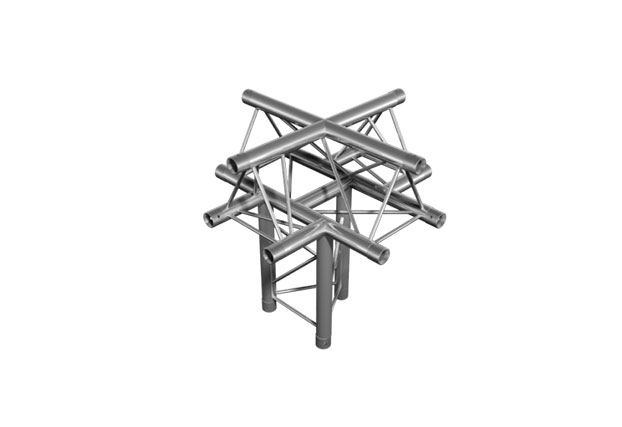

  • YT23 5-WAY CORNER T52

    YT23 5-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

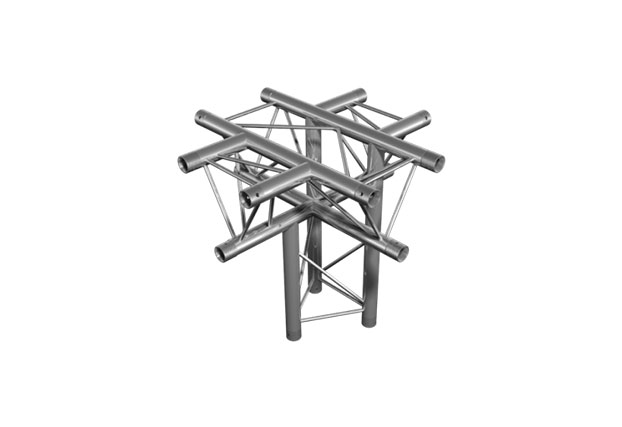

  • YT23 5-WAY CORNER T53

    YT23 5-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

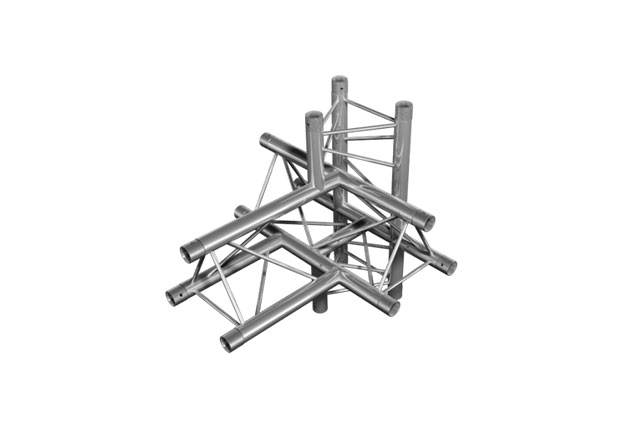

  • YT23 5-WAY CORNER T51

    YT23 5-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US

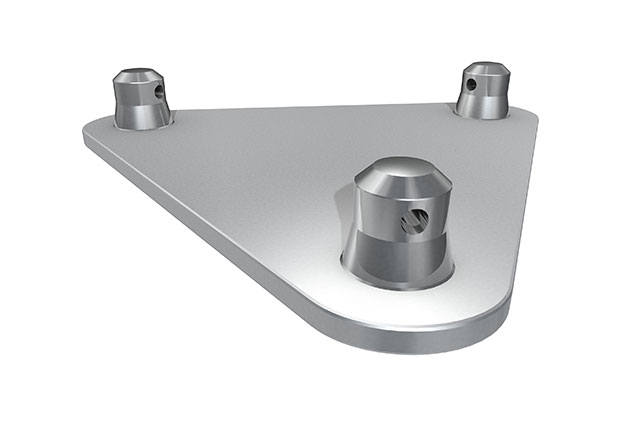

  • YT23 BASE

    YT23 BASE

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT23

    Type: Sonderteil

    CONTACT US
